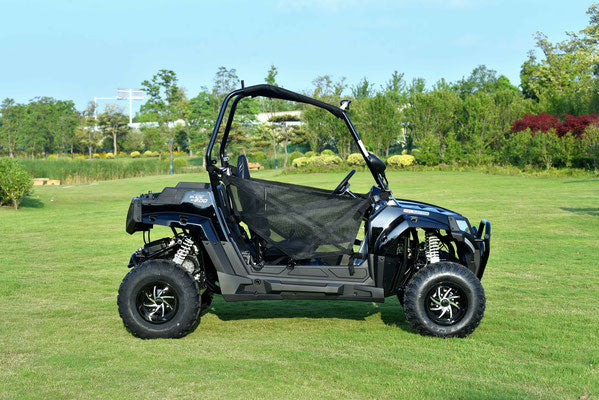

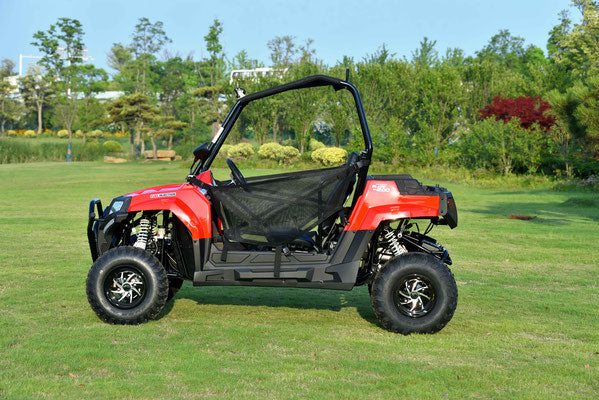

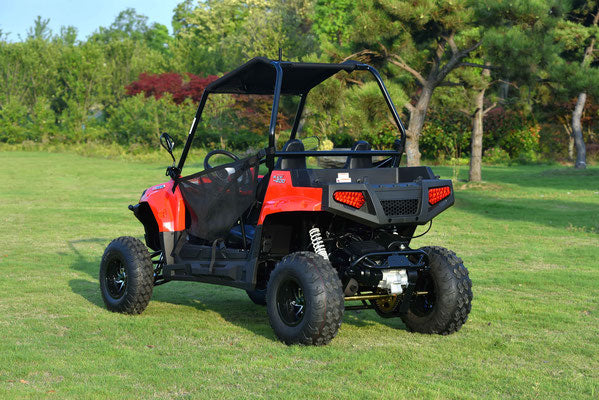

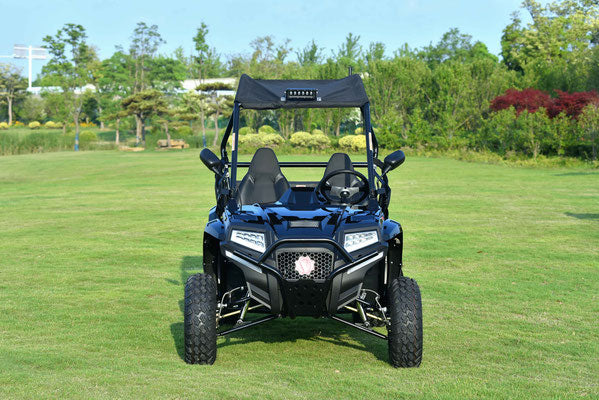

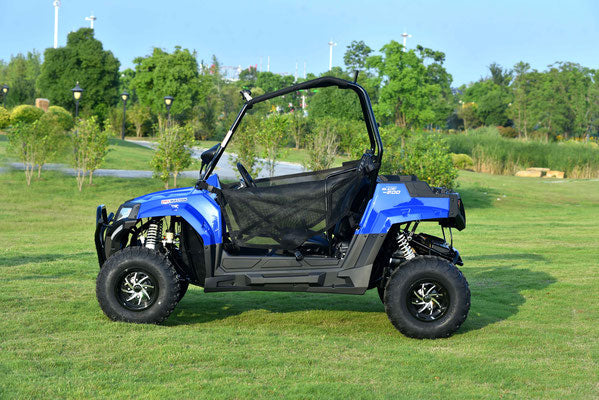

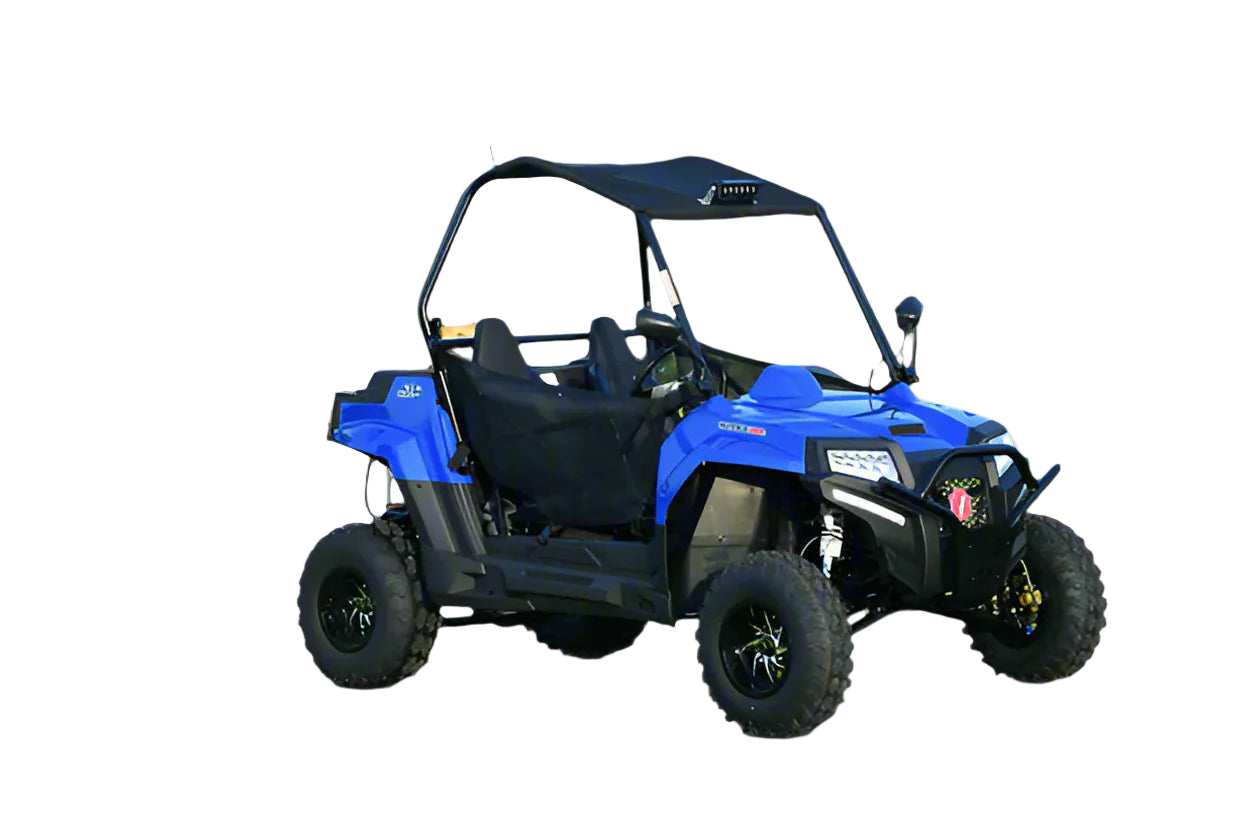

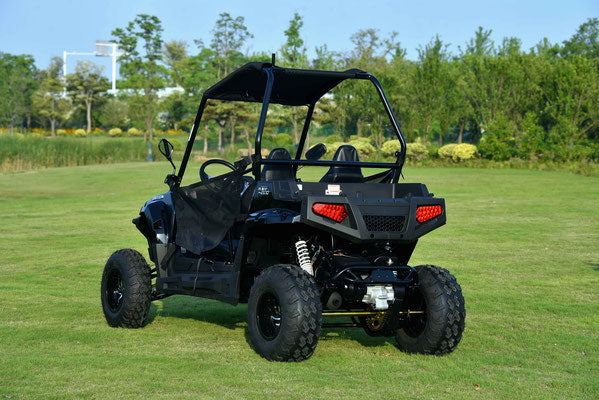

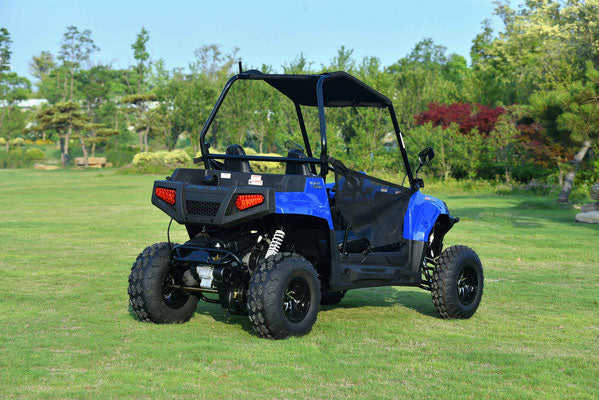

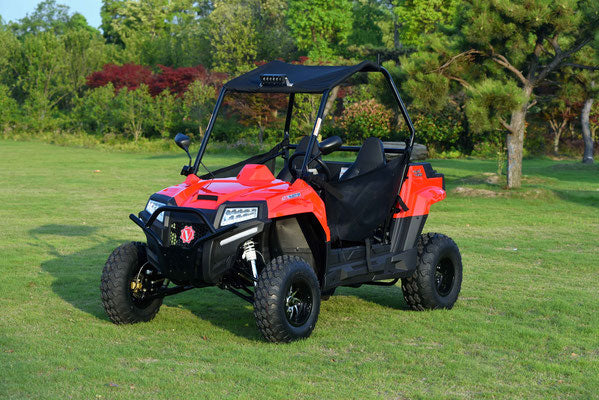

The BLADE 200 EFI is a compact UTV designed for light-duty tasks and recreational use. Its electronic fuel injection system ensures efficient performance and reliability.
Specifications:
Engine Type: Single Cylinder, 4-Stroke
Displacement: 168.9cc
Cooling System: Air-cooled
Fuel System: Electronic Fuel Injection (EFI)
Compression Ratio: 9.2:1
Ignition Type: Electronic Control Unit (ECU)
Starting System: Electric Start
Horsepower: 11 HP
Transmission: CVT with Forward, Neutral, and Reverse; Chain Drive
Drive System: 2WD
Maximum Power: 8.3 kW at 8000 RPM
Maximum Torque: 11 Nm at 6000 RPM
Top Speed: 51 km/h (32 mph)
Fuel Capacity: 9.5 liters (2.5 gallons)
Dimensions (L x W x H): 2450 x 1220 x 1530 mm (96.5 x 48 x 60.2 inches)
Ground Clearance: 152 mm (5.9 inches)
Wheelbase: 1860 mm (73.2 inches)
Weight: 283 kg (623.9 lbs)
Brakes: Front: Dual Hydraulic Disc; Rear: Single Axle Hydraulic Disc
Parking Brake: Hand-Actuated
Tires: Front: AT21x7-10; Rear: AT22x10-10
Suspension: Front: Dual A-Arm; Rear: Dual Shock Swing Arm
Cargo Box Dimensions: 554 x 1220 x 165 mm (21.8 x 48 x 6.5 inches)
Cargo Box Capacity: 30 kg (66.1 lbs)
The BLADE 200 EFI's compact size and efficient engine make it suitable for small-scale hauling and navigating tight spaces. Its EFI system provides smooth throttle response and improved fuel efficiency.
