MAX 125cc ATV

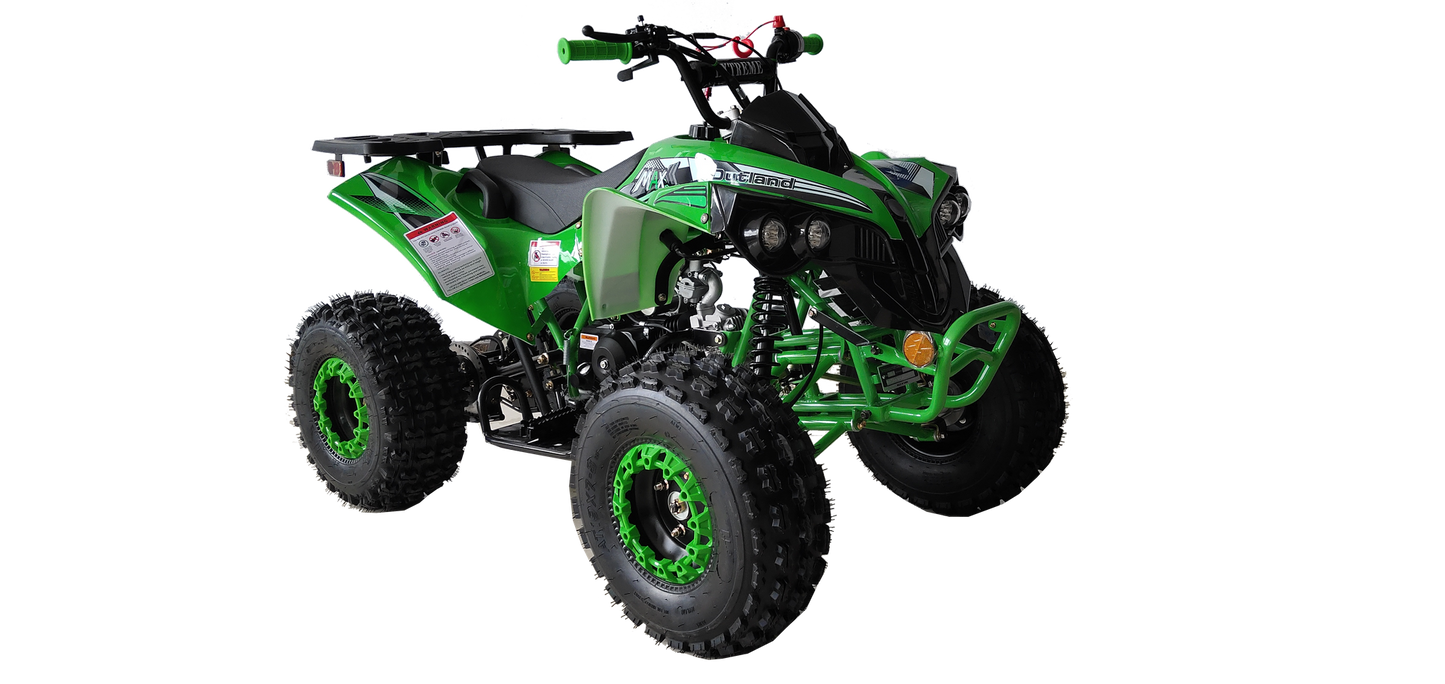

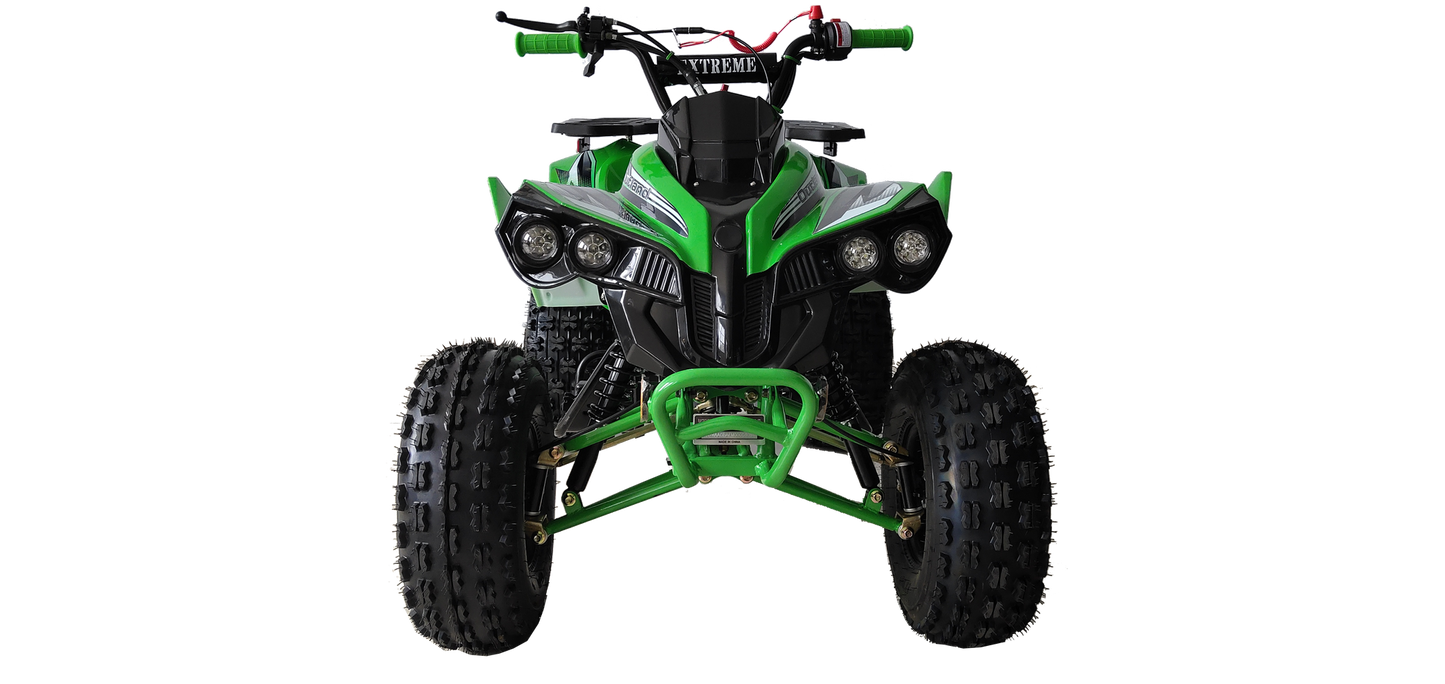

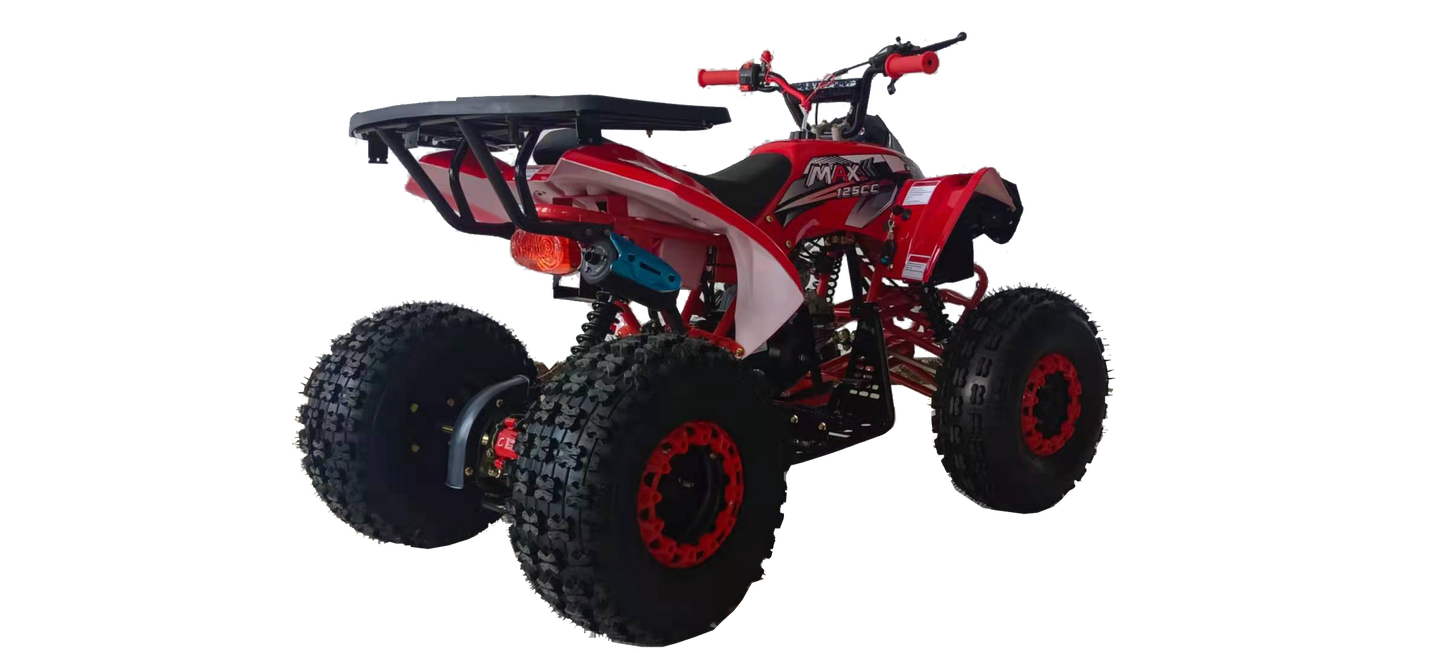

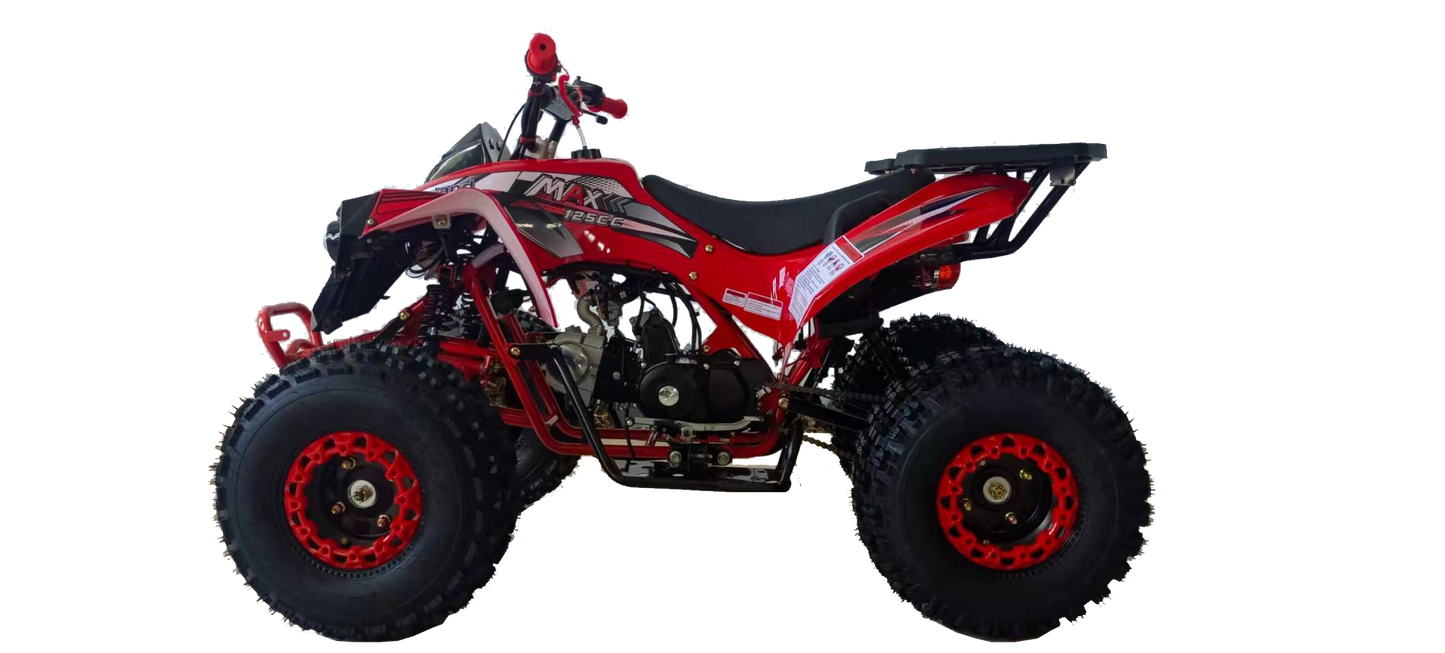

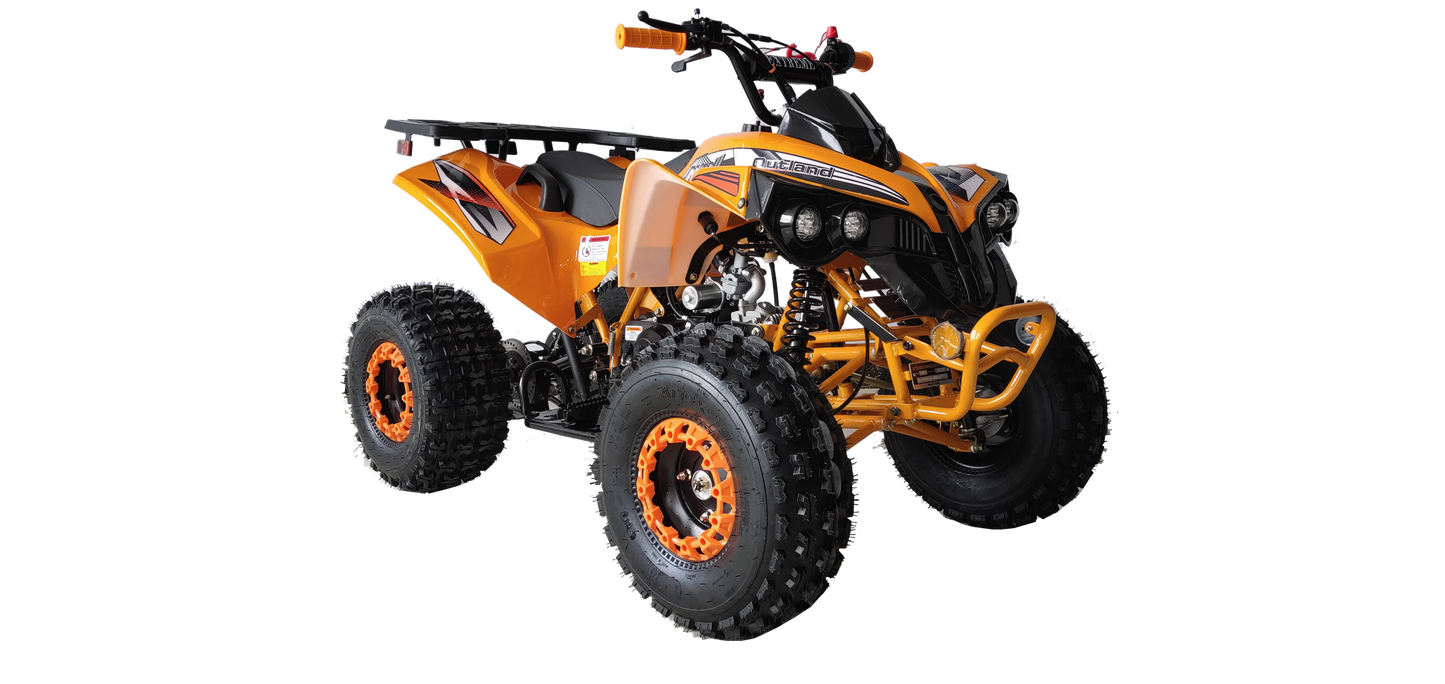

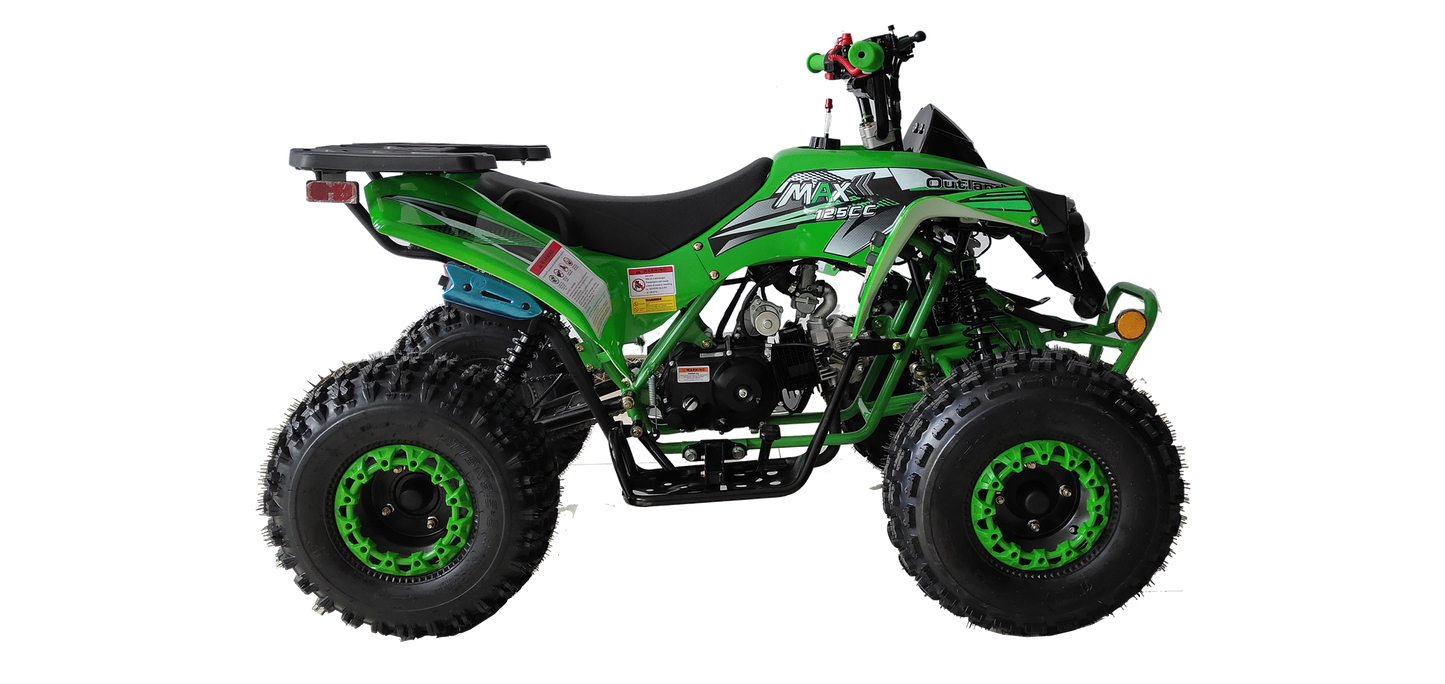

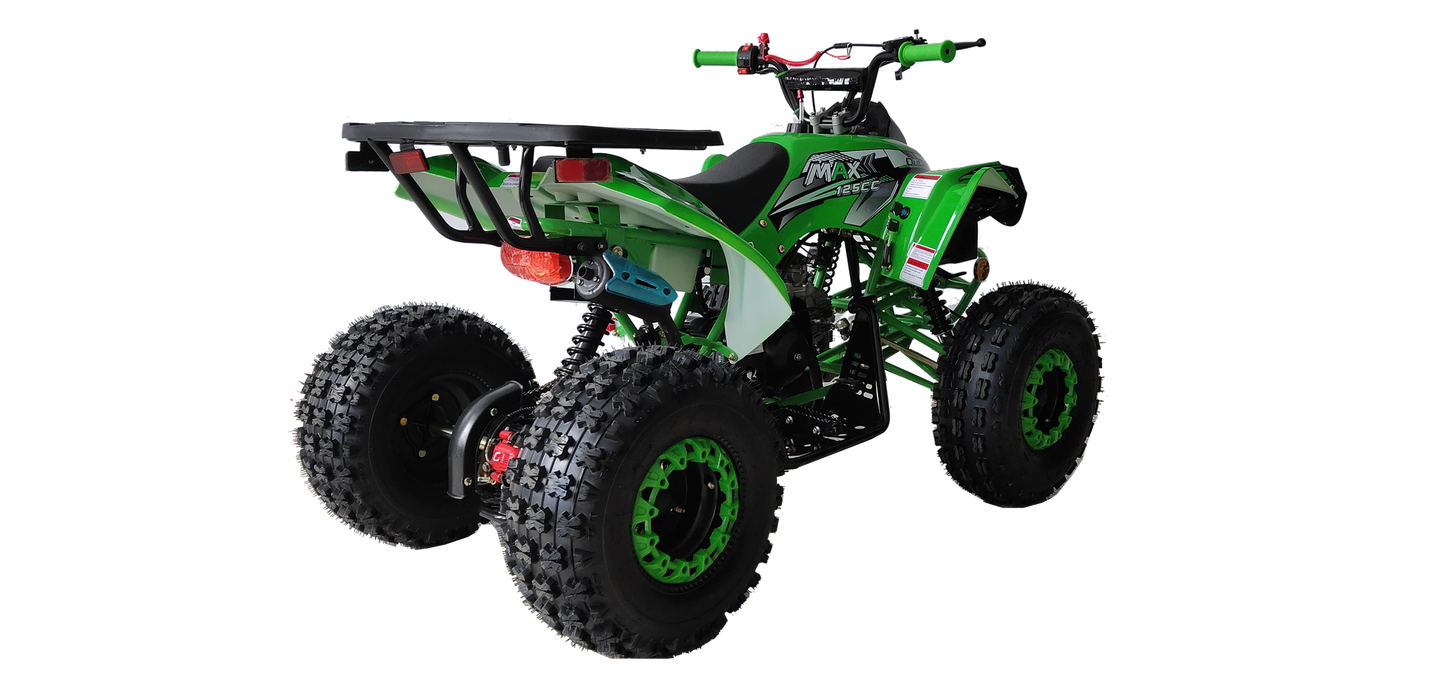

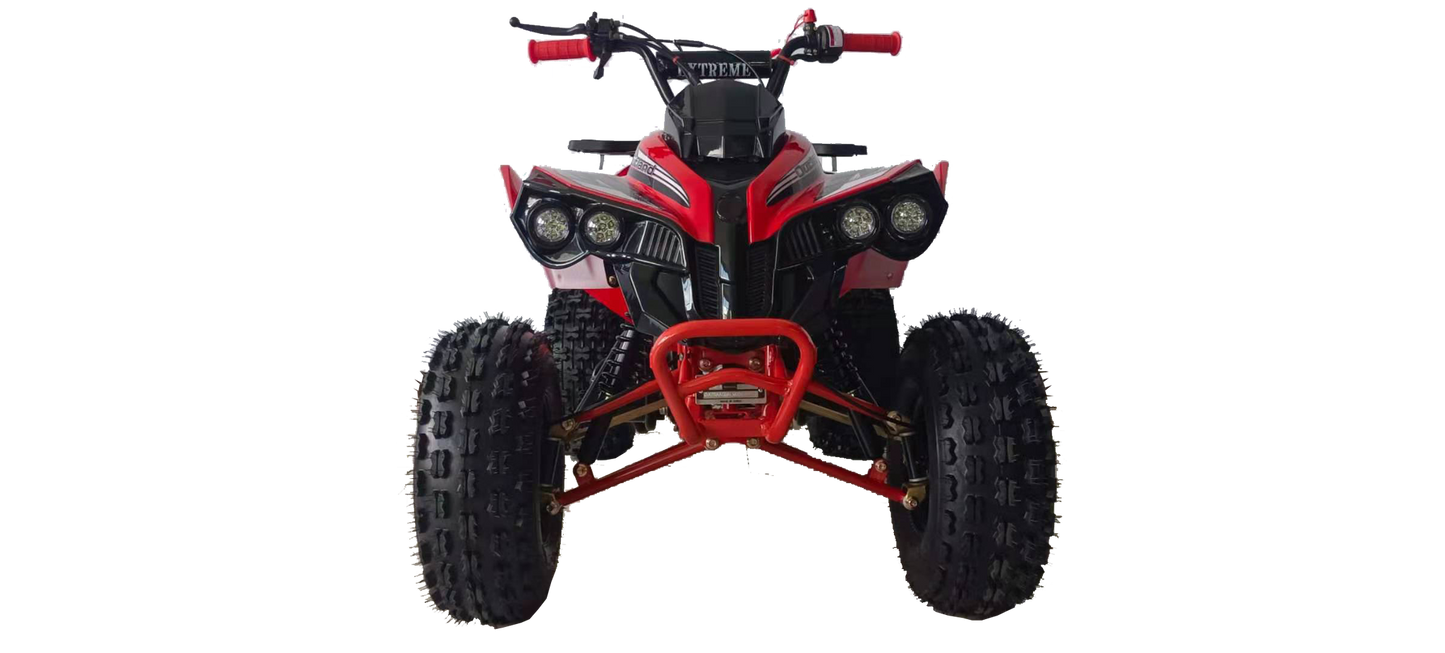

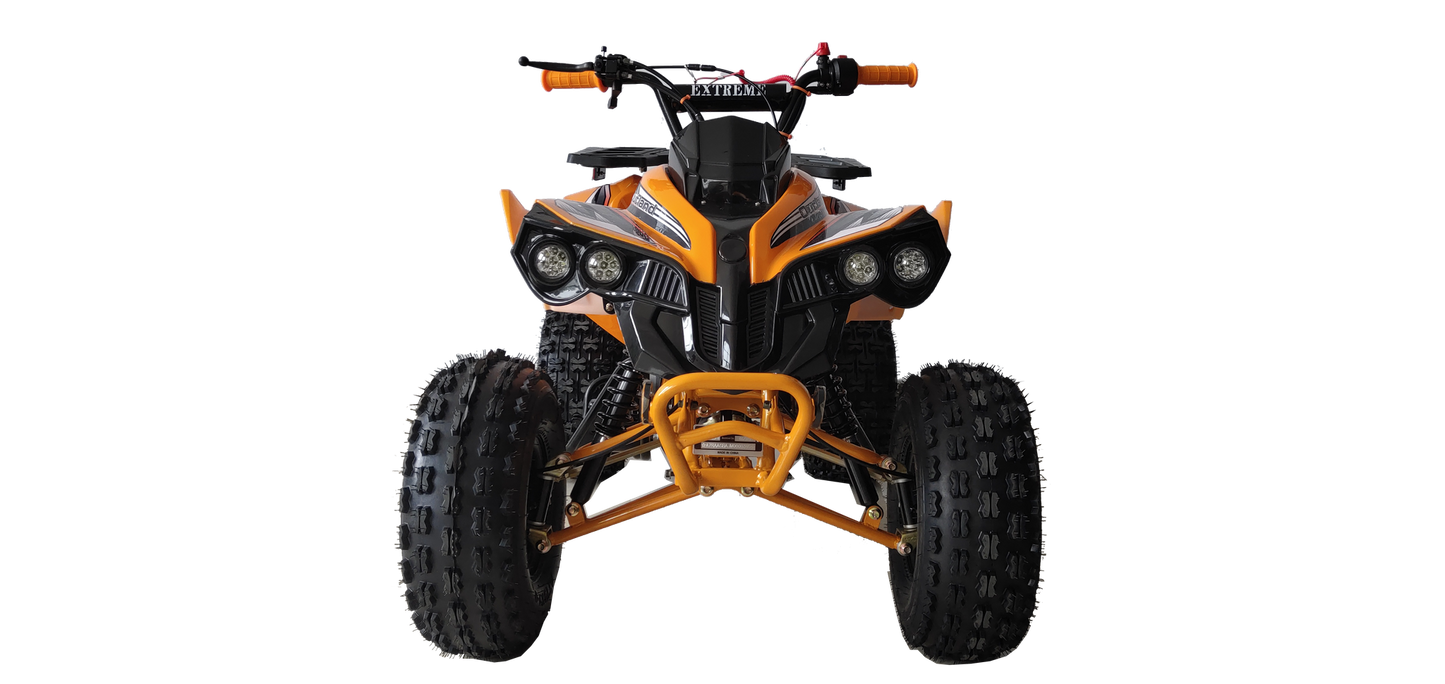

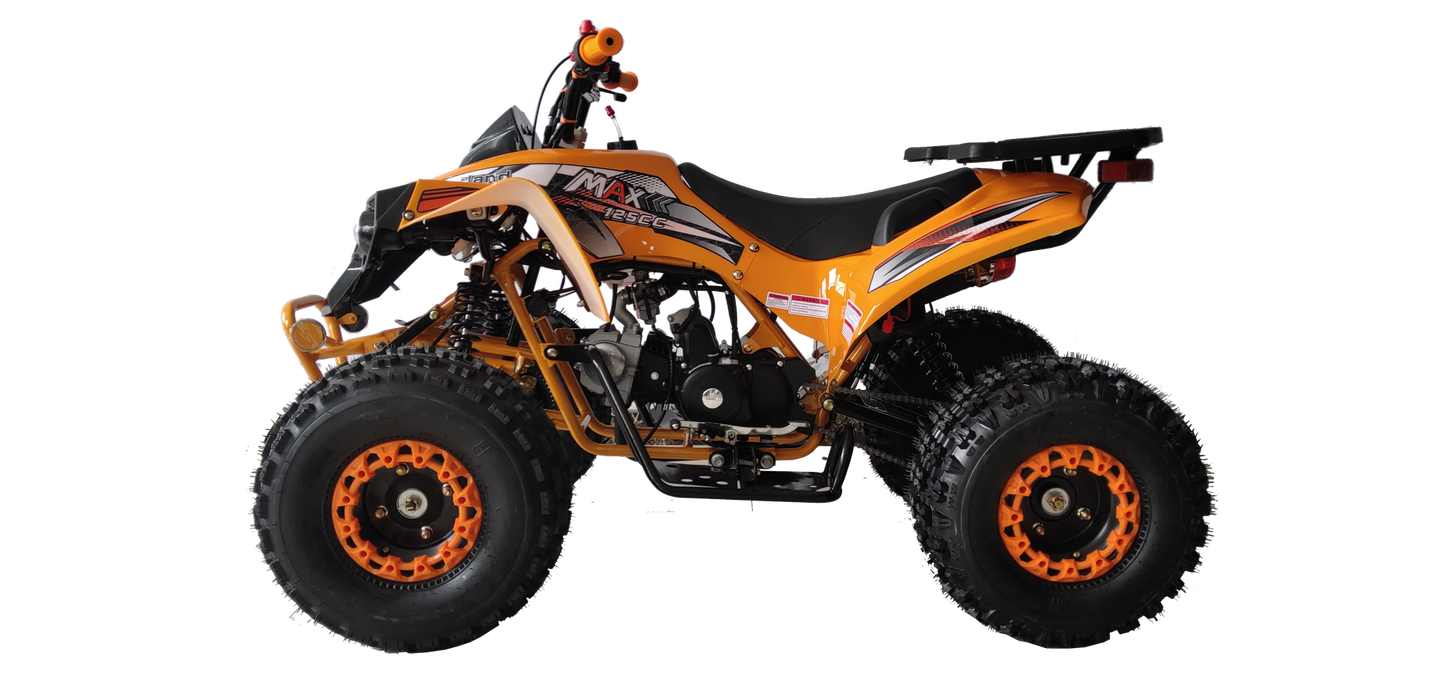

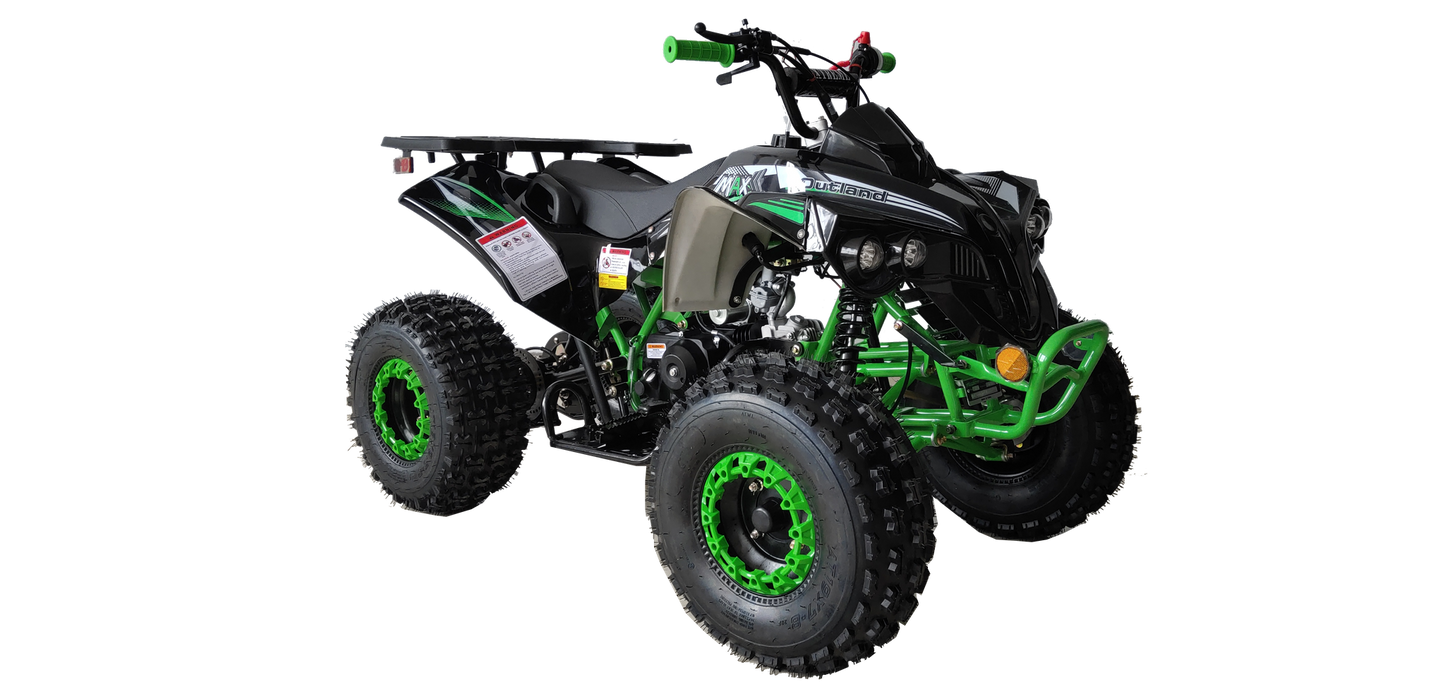

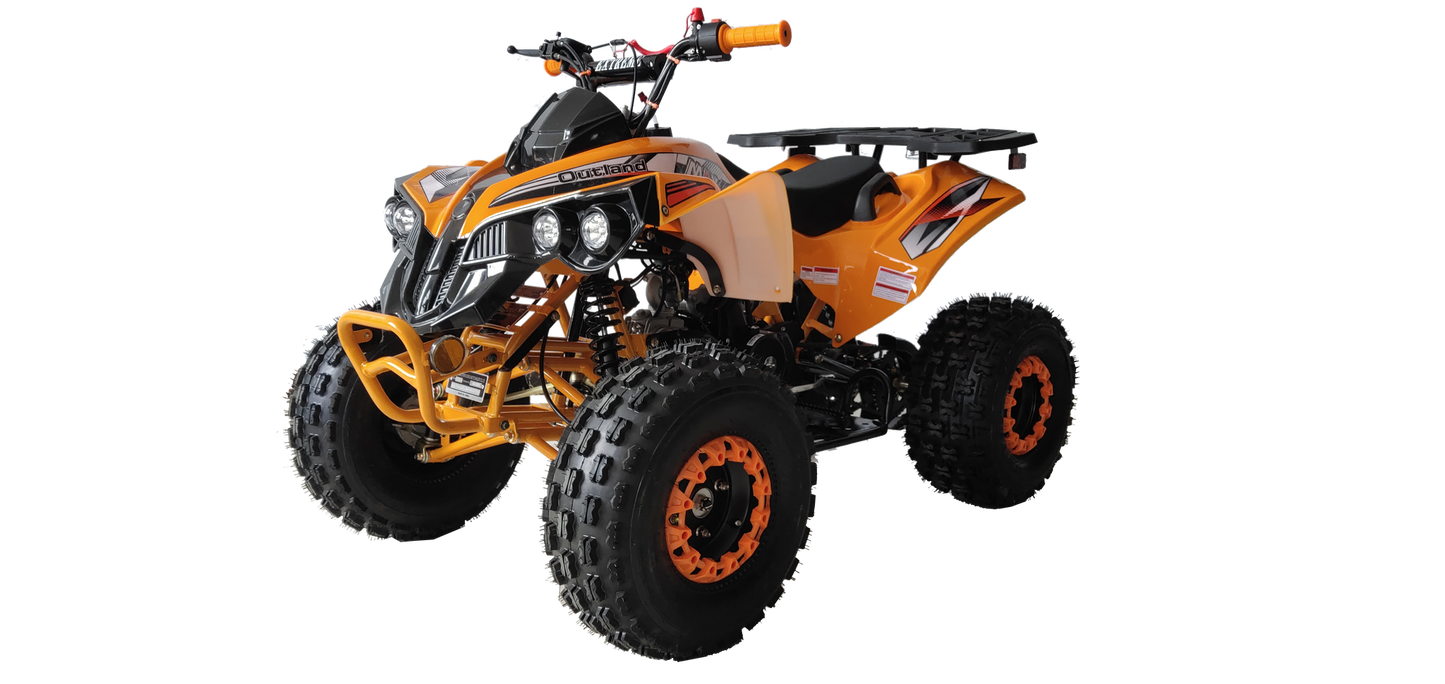

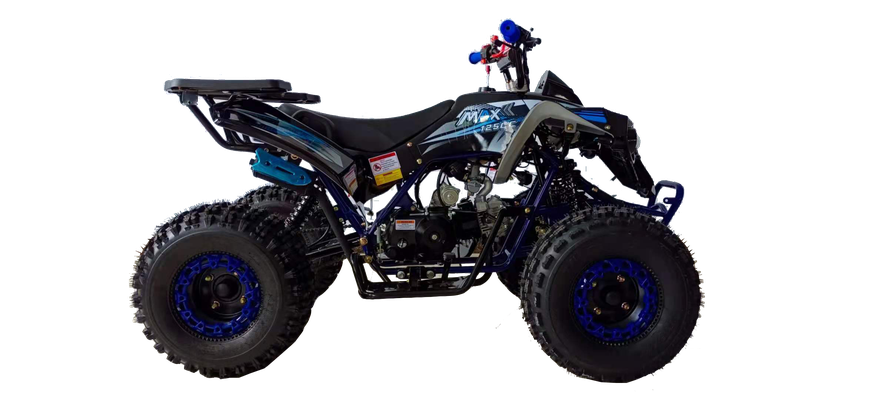

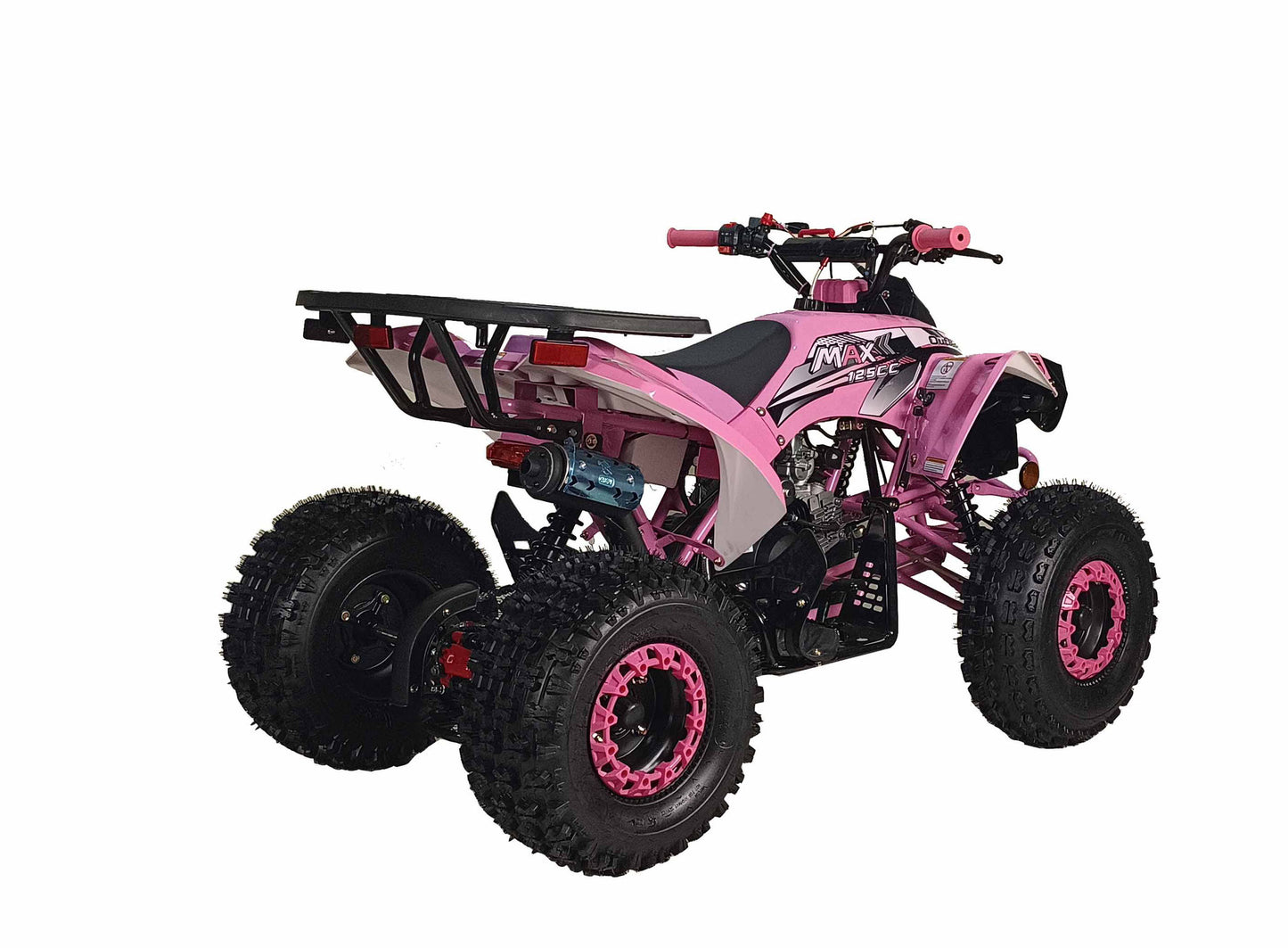

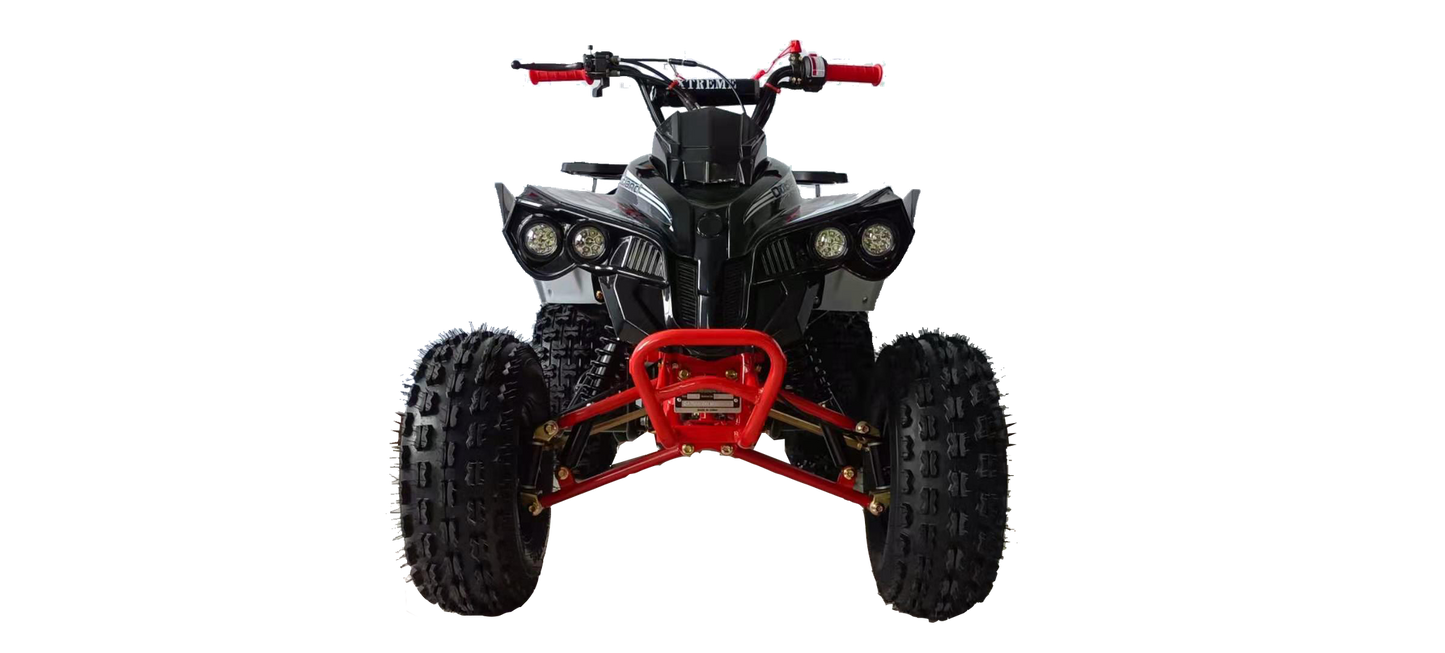

Vitacci Max 125cc ATV – Automatic with Reverse

The Vitacci Max 125cc ATV is a mid-size youth all-terrain vehicle designed for riders aged 12 and up, offering a balance of performance and safety features. Powered by a 125cc single-cylinder, 4-stroke, air-cooled engine, it delivers reliable power suitable for various terrains. The automatic transmission with reverse, operated via foot shift, ensures ease of use for young riders.

Starting is effortless with the electric start system, and the CDI ignition provides dependable performance. The ATV features front drum brakes and a rear hydraulic disc brake, offering effective stopping power. With a maximum speed of 34 mph and a climbing ability of 18 degrees, it handles inclines and straightaways with confidence.

The Max 125 comes with 19x7-8 front tires and 18x9.5-8 rear tires, providing stability and traction. The 0.61-gallon fuel tank ensures extended riding sessions, and the 12V/5Ah battery supports all electrical components. Additional features include dual coil-over front suspension and a single rear coil-over mono-shock, providing over four inches of ground clearance for smooth trail rides.

Specifications

The engine is a 125cc, single-cylinder, 4-stroke, air-cooled type with a maximum speed of 34 mph and an 18-degree climbing ability. It uses an electric start and CDI ignition. The transmission is automatic with reverse, operated via a foot shifter. The final drive system is chain-driven. The front brakes are drum type, and the rear brake is a hydraulic disc. The battery is 12V/5Ah. The tires are 19x7-8 in the front and 18x9.5-8 in the rear. Fuel tank capacity is 0.61 gallons.

Dimensions and Weight

The seat height is approximately 24.4 inches. Ground clearance measures 4.3 inches. The wheelbase spans 39.7 inches. Maximum load capacity is 166 pounds. The ATV’s net weight is 285 pounds, and its gross weight is 310 pounds. Overall dimensions are 55.5 inches in length, 39.7 inches in width, and 37.9 inches in height. Shipping dimensions are 58 inches long, 30.5 inches wide, and 26 inches high.
